RF

HIGH VOLTAGE

Wire Winding Machines

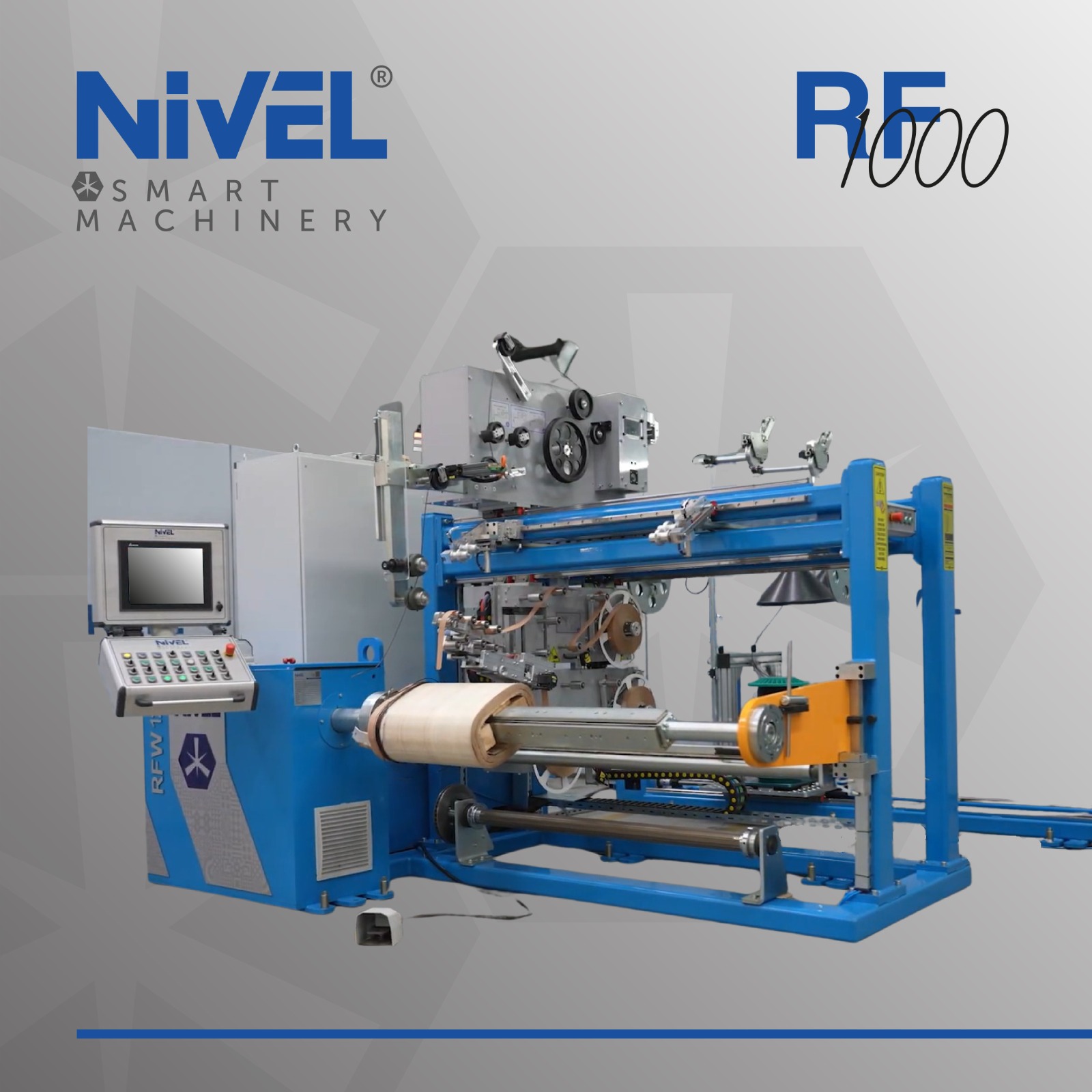

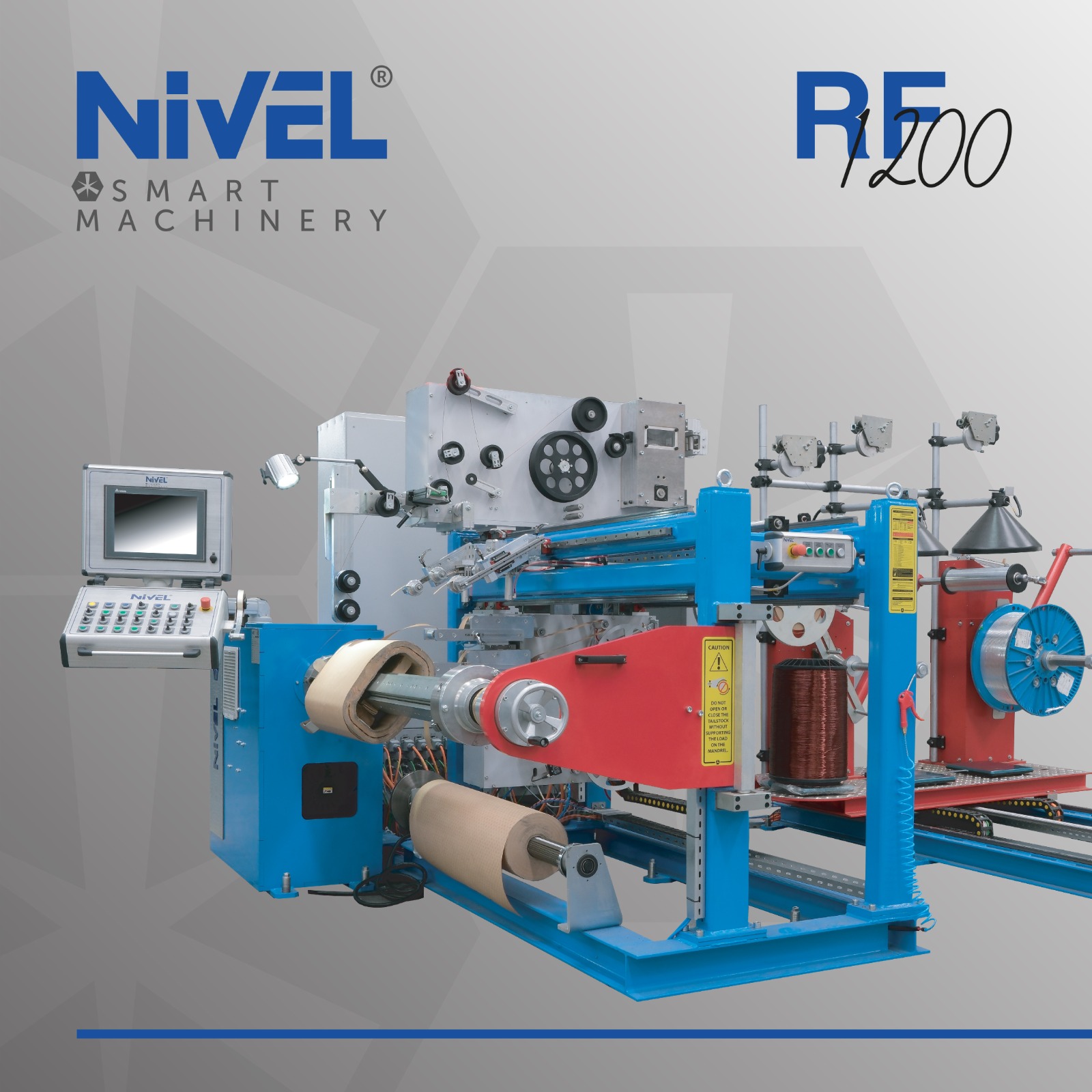

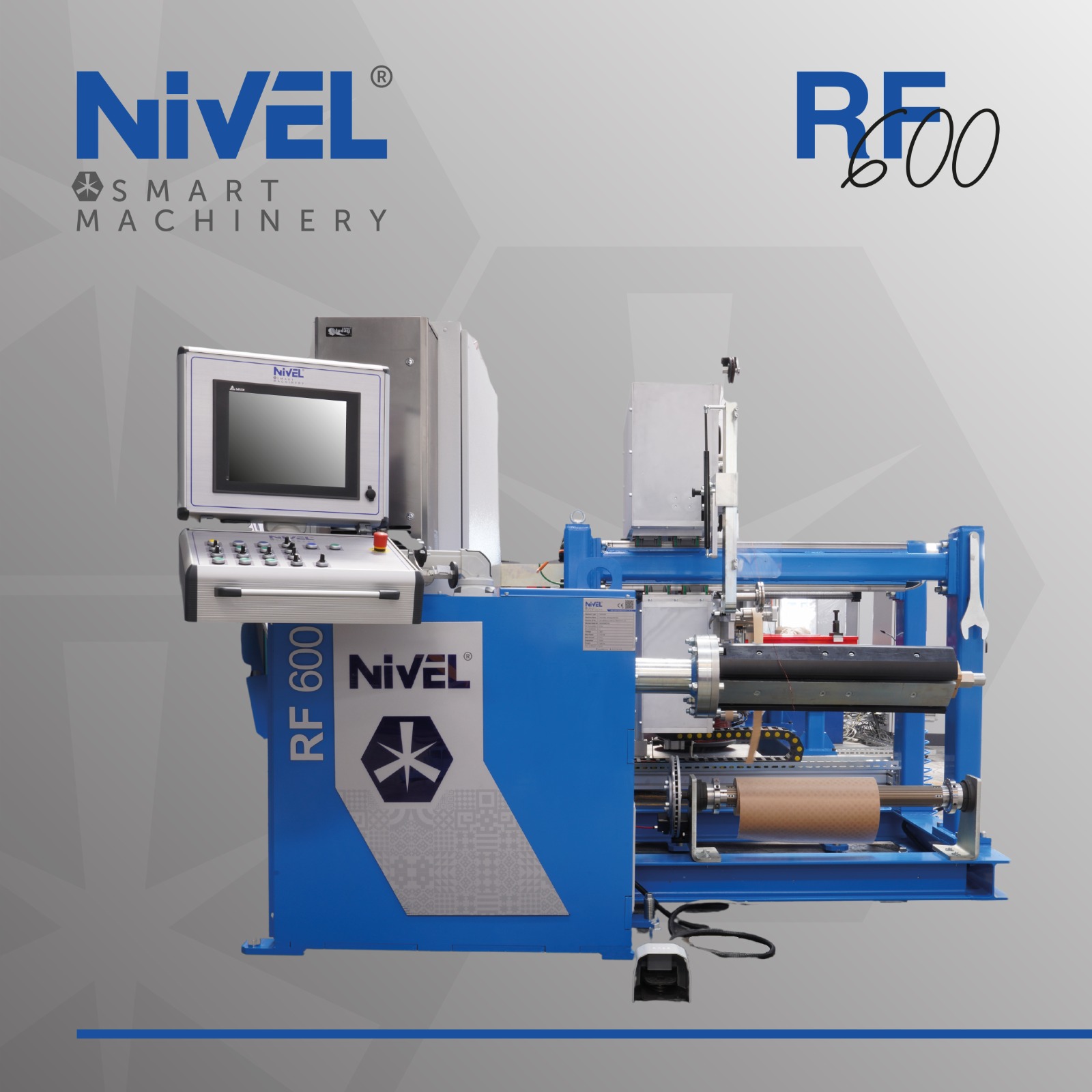

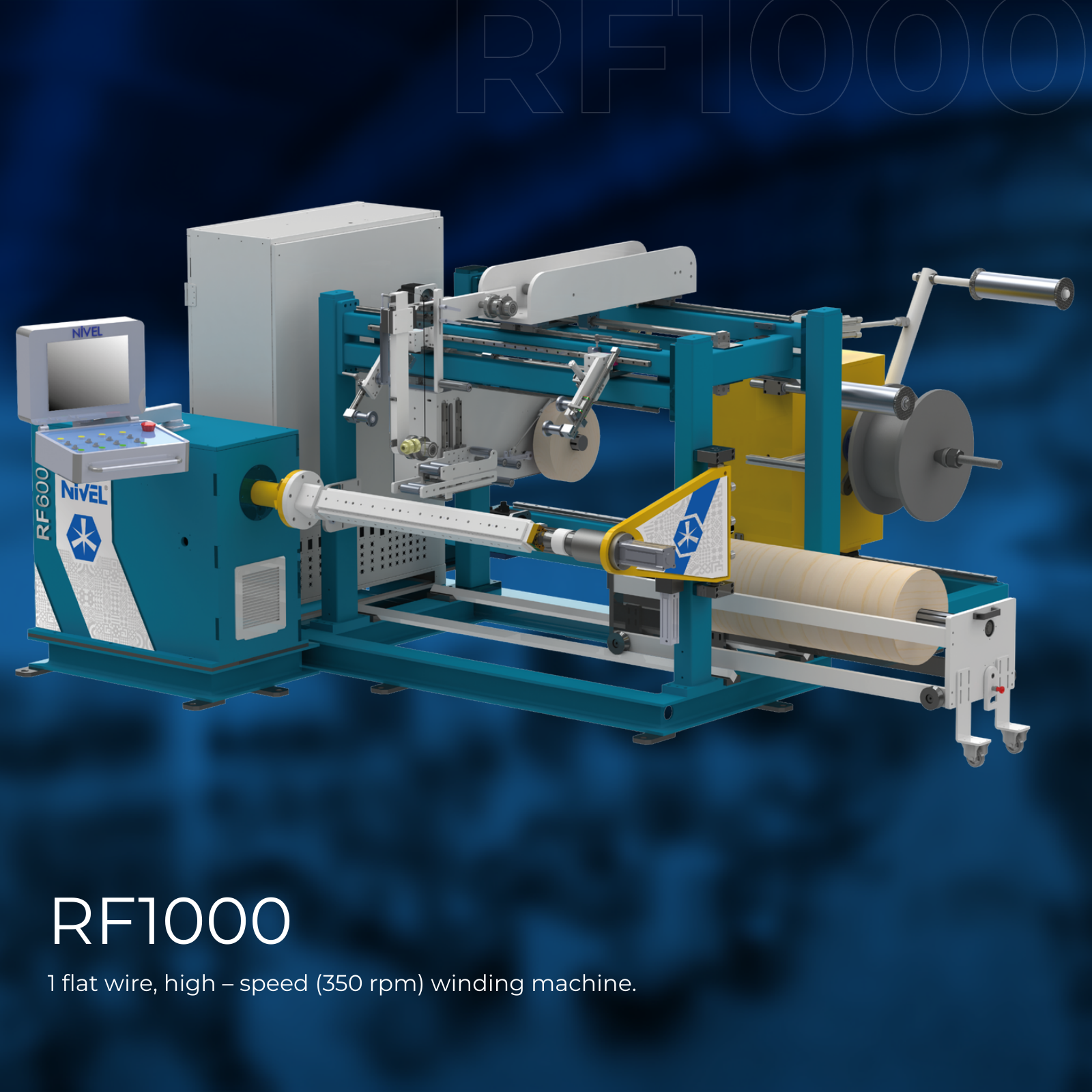

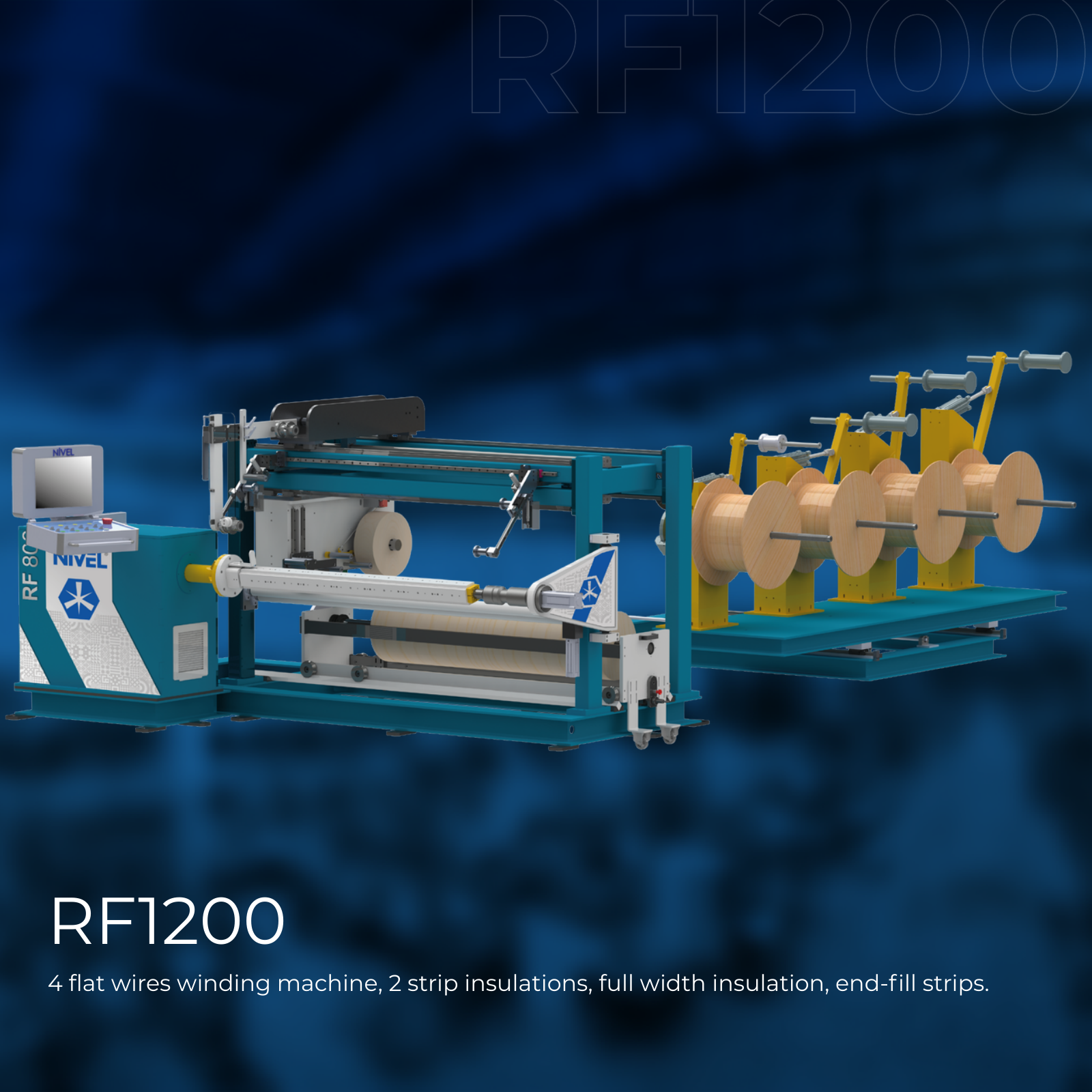

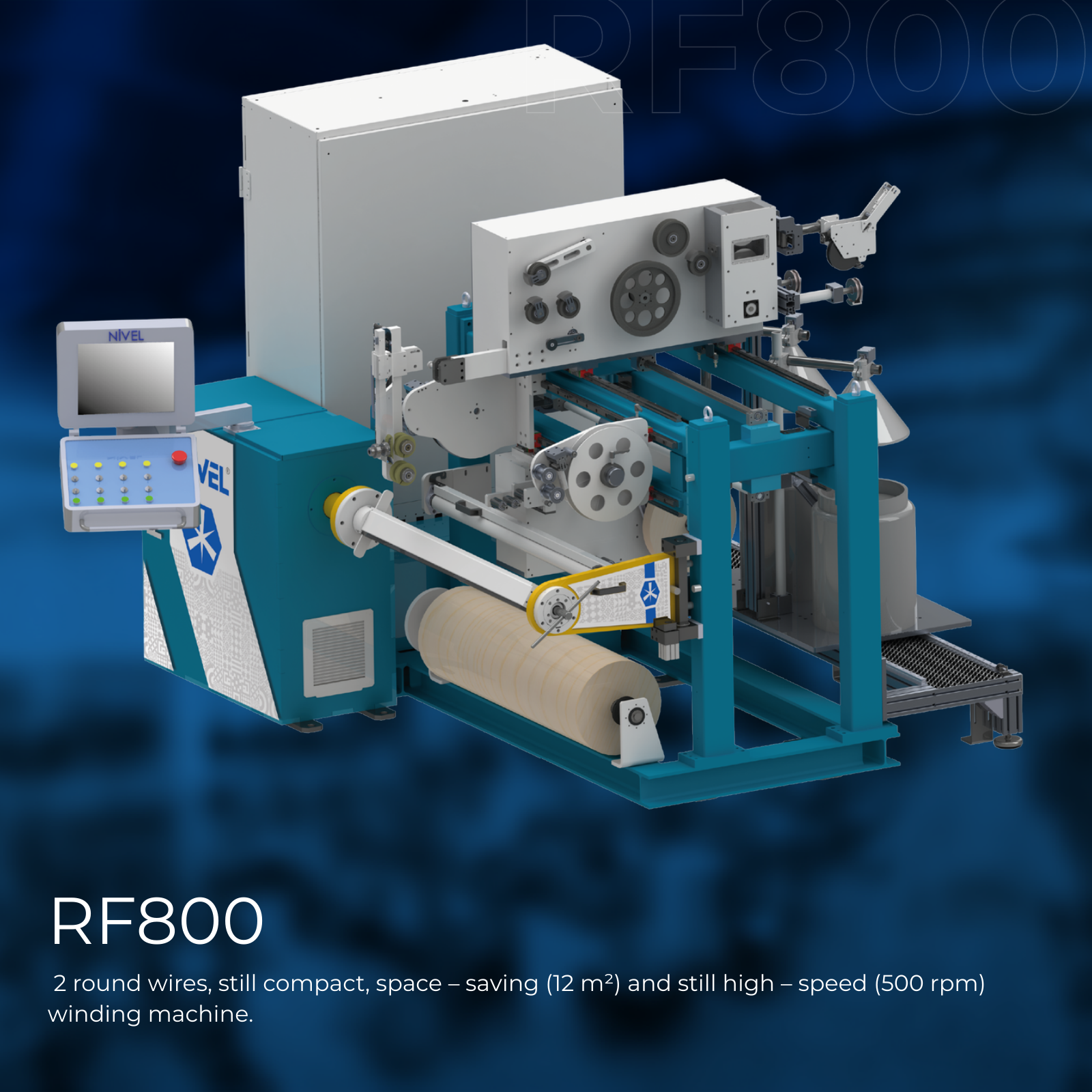

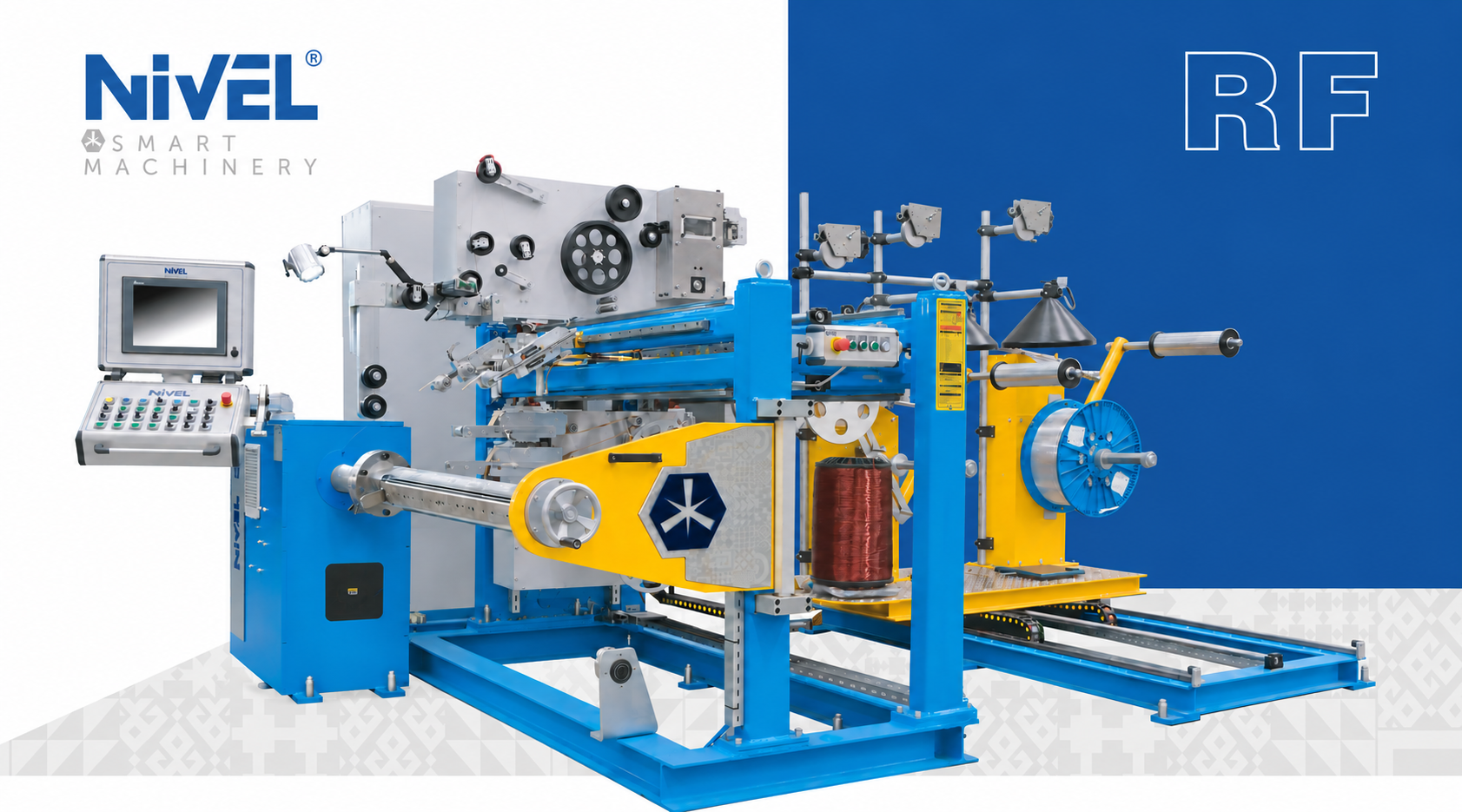

The RF series wire winding machines are designed for production HV coils of distribution transformers with round, flat and flattened wires, strip insulation, full width insulation and end-fill strip.

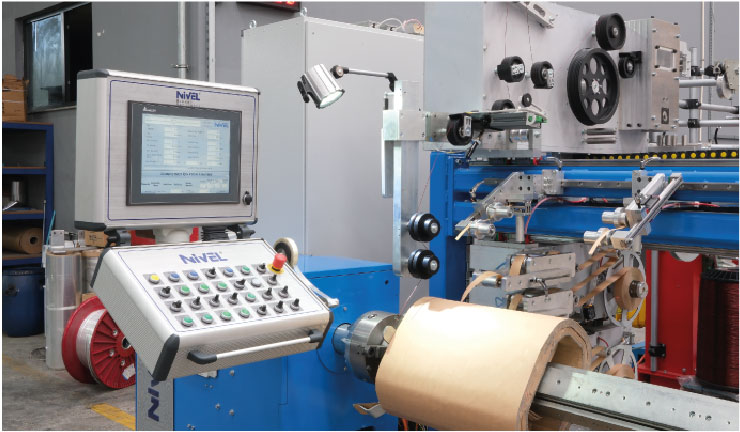

The main control panel with 15″ color touch screen allows easy creating winding program. All programmed steps for cooling channel or lead out operations will be automatically stopped at all necessary positions and advises the operator about the next step. Our winding control system allows for easy changes of the software according to the Purchaser’s needs and language.

The wire flattening device makes round wire flattened, which allows to increase filling factor during winding and get compact winding. The round wire brake provides always constant wire tension over the entire wire range. The dancer system allows winding of oval and rectangular shaped coils at high speed. The height adjustable wire guiding arm allows to guide wire close to winding area.

The standard design of this machine is equipped with one strip insulation and two end-fill strips. The strip insulation guiding unit with elevation function allows to get graded layer insulation, which reduces winding materials and costs of transformer.

Two end-fill strip devices allow the winding of end-fill strips on both sides of the coil.

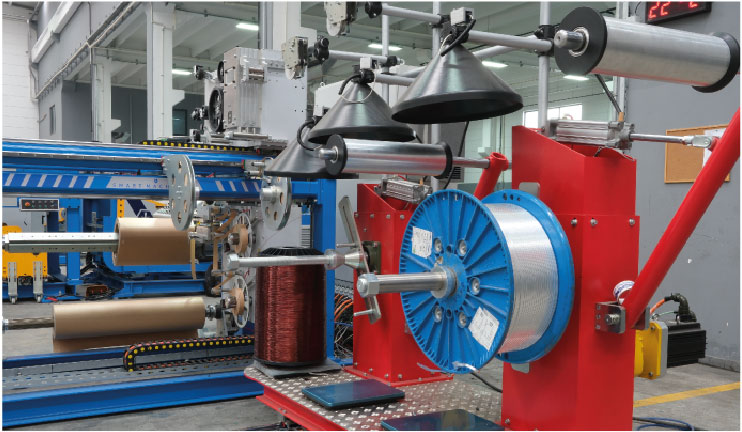

Round and flat wire decoilers with motor move horizontally, following automatically the wire guide to feed wire straight.

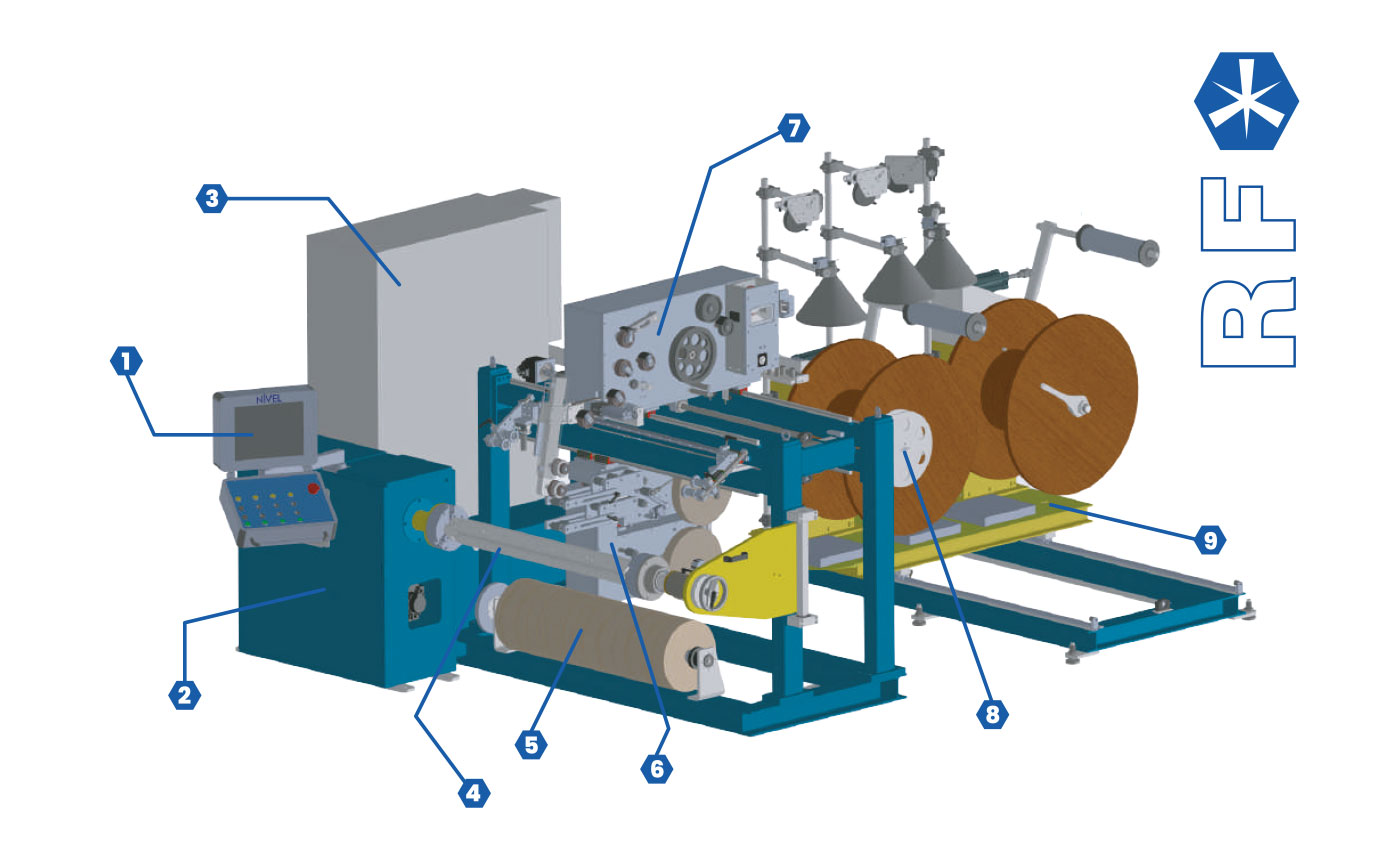

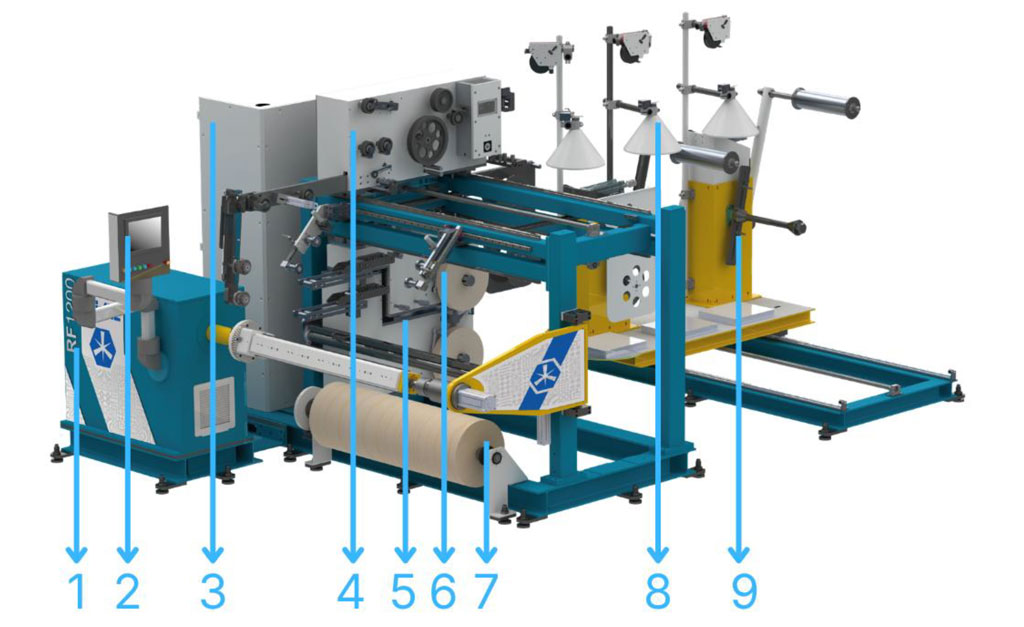

  1. Winder
    1.1. Headstock with winding drive and faceplate
    1.2. Tailstock
    1.3. Mandrel
    1.4. Foot pedal with emergency stop
  2. 15” HMI touch screen control panel
  3. Control cabinet
  4. Wire winding system
    4.1. Wire clamping
    4.2. Wire guiding arm
    4.3. Laser Line pointer
    4.4. Dancer for thin round wire
    4.5. Dancer for thick round wire
    4.6. Round wire brake
    4.7. Round wire flattener
    4.8. Enamelled wire insulation detection device
    4.9. Flat wire guiding rolls
  5. Strip insulation guiding system
    5.1. Pneumatic expandable shaft
    5.2. Dancer
    5.3. Diameter measuring device
    5.4. Motorized brake
  6. End fill strip automatic inserting and cutting
    6.1. Pneumatic expanding shaft
    6.2. Height adjustable guiding arm
    6.3. Feeding channel
    6.4. Feeding rolls
    6.5. Cutting knife
  7. Full width insulation de-coiler
    7.1. Triangle frames
    7.2. Pneumatic disc brake
    7.3. Pneumatic expandable mandrel with quick clamping
  8. Overhead de-coilers for round wire/s
    8.1. Pneumatic brake
    8.2. Round wire pre-tension
    8.3. Wire end-detection
    8.4. Electric scale for round wire
  9. Flat wire de-coiler
    9.1. Motorized brake
    9.2. Rewinding

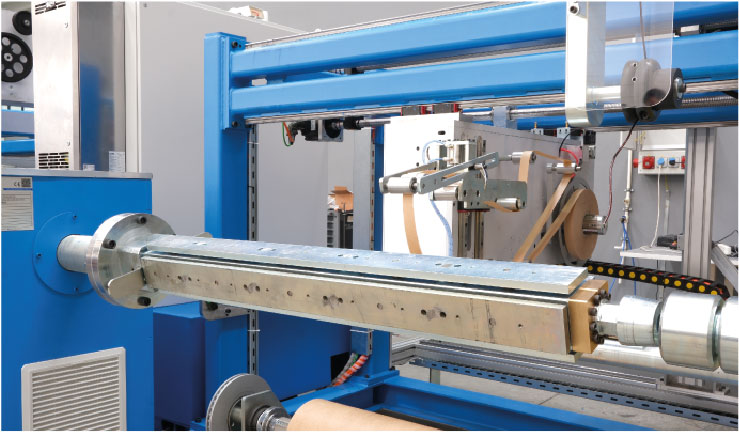

  10. Rectangular expandable mandrel
_

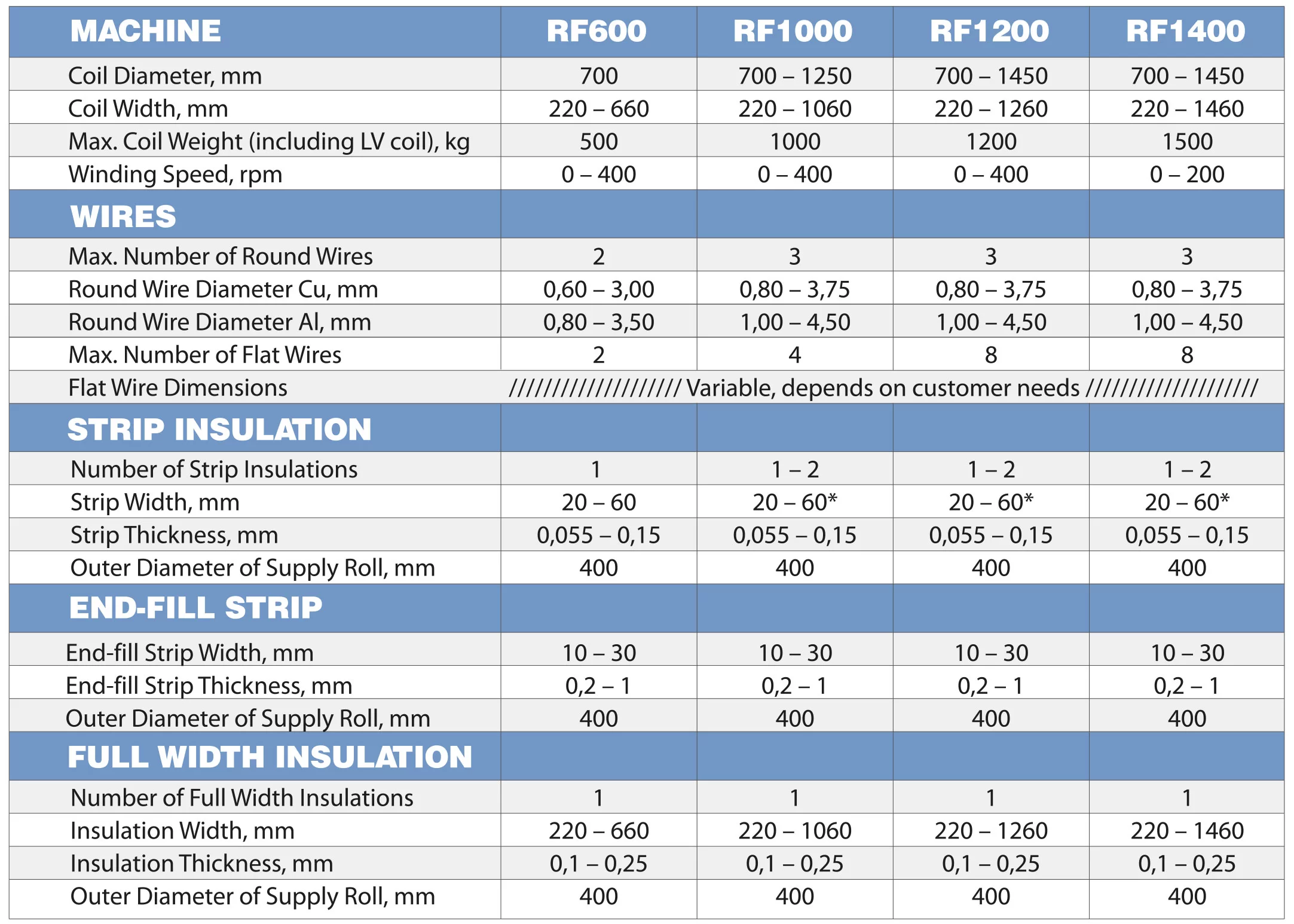

TECHNICAL DATA

High Voltage Wire Winding Machines

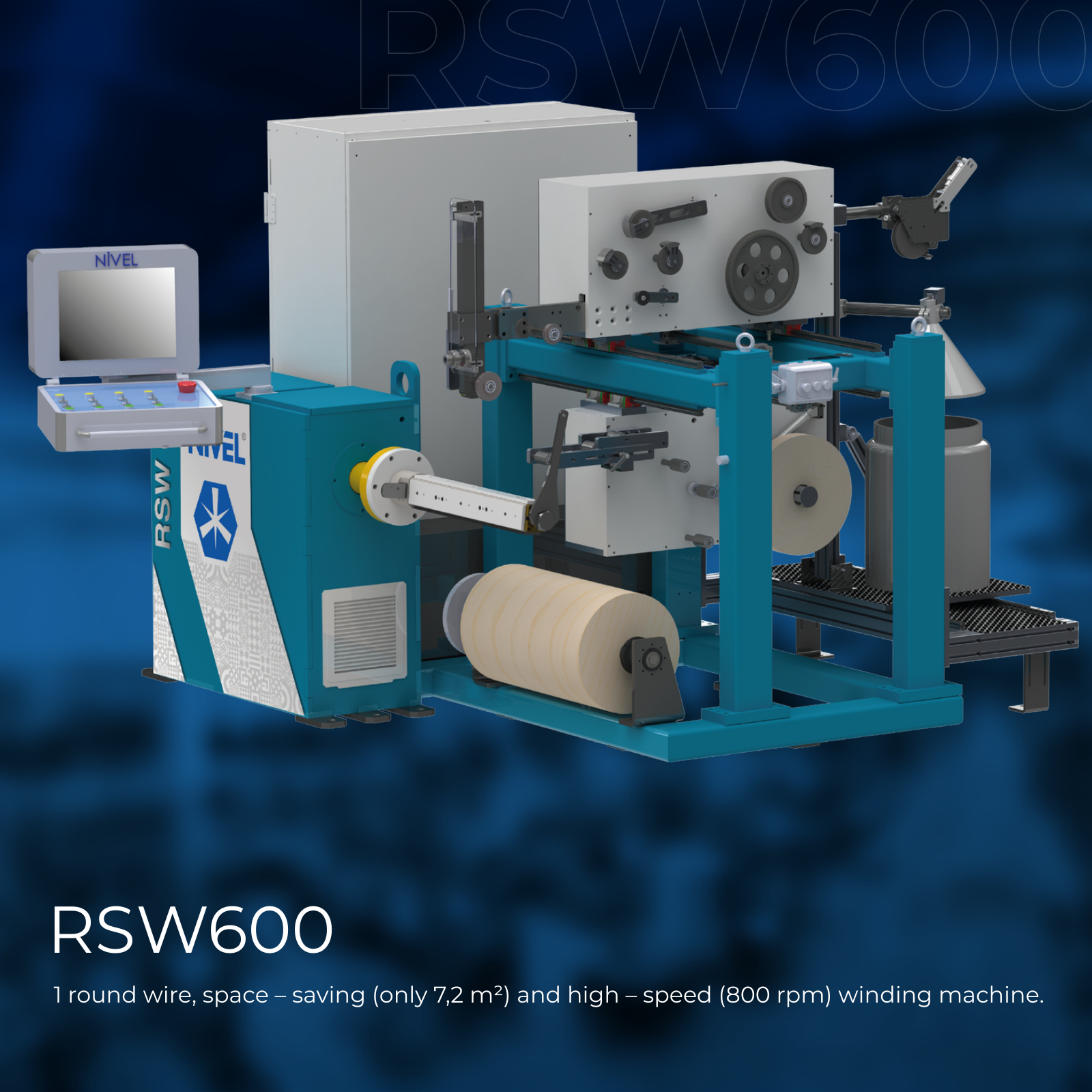

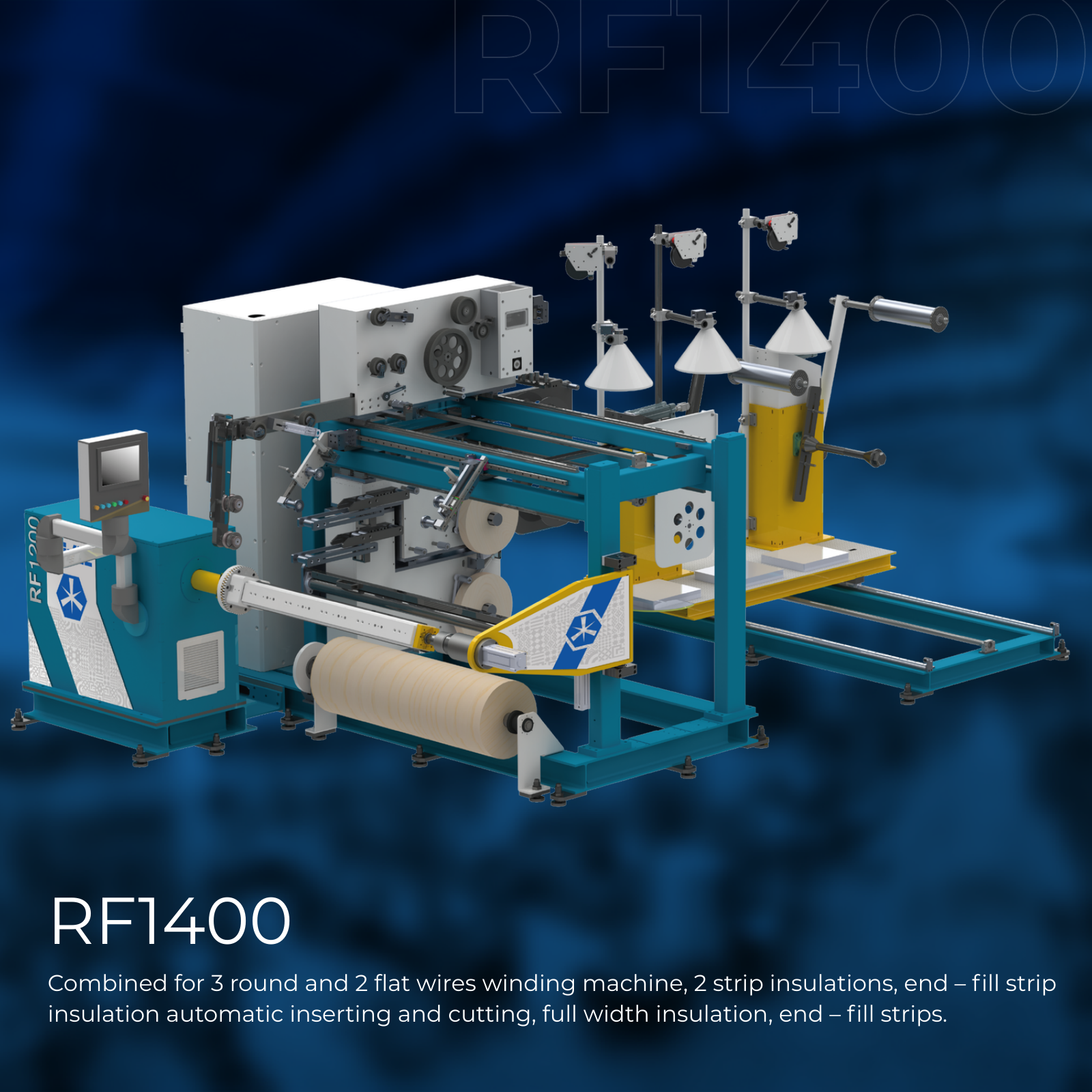

MACHINE RSW600 RF1000 RF1200 RF1400
Coil Diameter, mm 700 700 – 1250 700 – 1450 700 – 1450
Coil Width, mm 220 – 660 220 – 1060 220 – 1260 220 – 1460
Max. Coil Weight (including LV coil), kg 500 1000 1200 1500
Winding Speed, rpm 0 – 400 0 – 400 0 – 400 0 – 200
WIRES
Max. Number of Round Wires 2 3 3 3
Round Wire Diameter Cu, mm 0,60 – 3,00 0,80 – 3,75 0,80 – 3,75 0,80 – 3,75
Round Wire Diameter Al, mm 0,80 – 3,50 1,00 – 4,50 1,00 – 4,50 1,00 – 4,50
Max. Number of Flat Wires 2 4 8 8
Flat Wire Dimensions Variable, depends on customer needs
STRIP INSULATION
Number of Strip Insulations 1 1 – 2 1 – 2 1 – 2
Strip Width, mm 20 – 60 20 – 60* 20 – 60* 20 – 60*
Strip Thickness, mm 0,055 – 0,15 0,055 – 0,15 0,055 – 0,15 0,055 – 0,15
Outer Diameter of Supply Roll, mm 400 400 400 400
END-FILL STRIP
End-fill Strip Width, mm 10 – 30 10 – 30 10 – 30 10 – 30
End-fill Strip Thickness, mm 0,2 – 1 0,2 – 1 0,2 – 1 0,2 – 1
Outer Diameter of Supply Roll, mm 400 400 400 400
FULL WIDTH INSULATION
Number of Full Width Insulations 1 1 1 1
Insulation Width, mm 220 – 660 220 – 1060 220 – 1260 220 – 1460
Insulation Thickness, mm 0,1 – 0,25 0,1 – 0,25 0,1 – 0,25 0,1 – 0,25
Outer Diameter of Supply Roll, mm 400 400 400 400
